High-Speed Card Sorting Solution with Multiple Output Channels
Get Free QuoteThe Card Sorting Machine (20/40 Outputs) is a specialized solution designed for high-speed sorting of cards, letters, and flat items into multiple output channels.
With 20 or 40 output channels, this system is ideal for applications requiring precise categorization of large volumes of items, such as postal services, banking, and logistics.
Configurable with 20 or 40 output channels for flexible sorting requirements.
Sorting speed up to 20,000 cards/hour, ensuring high throughput for demanding operations.
Advanced OCR and barcode recognition technology for accurate sorting decisions.
Specially designed for delicate items like cards and letters, minimizing damage during sorting.
Integrated with WCS for real-time monitoring, fault detection, and data analytics.
Modular design for easy access and maintenance, reducing downtime and operational costs.
| Parameter | Specification |
|---|---|
| Output Channels | 20 / 40 channels (customizable) |
| Sorting Capacity | Up to 20,000 cards/hour |
| Card Size Range | Min: 50x50mm / Max: 250x350mm |
| Card Thickness | 0.1 - 2.0 mm |
| Sorting Accuracy | >99.9% |
| Recognition Technology | OCR + Barcode (1D/2D) |
| Power Supply | 220V/50Hz (customizable) |
| Control System | PLC + WCS (Windows/Linux) |
Sorting of mail, postcards, and envelopes for efficient distribution.
Processing of bank cards, credit cards, and financial documents.
Sorting of flat items like invoices, labels, and packaging inserts.
Sorting of printed cards, brochures, and promotional materials.
Watch our Card Sorting Machine in action
Explore our Card Sorting Machine in detail

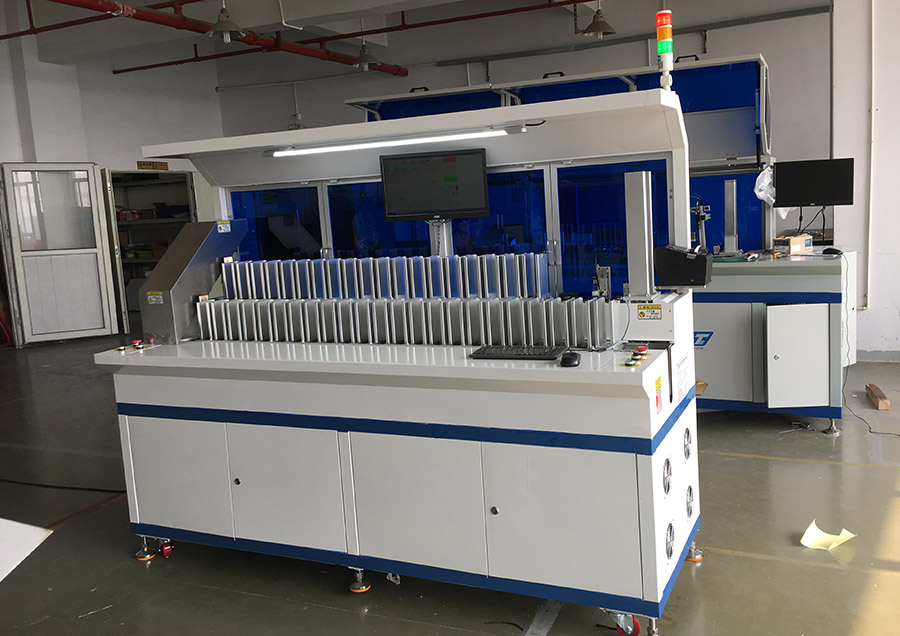

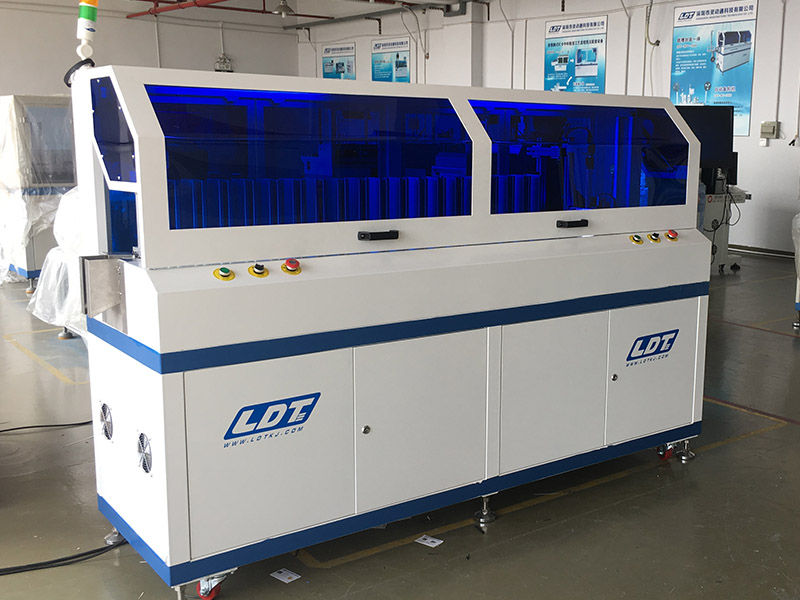

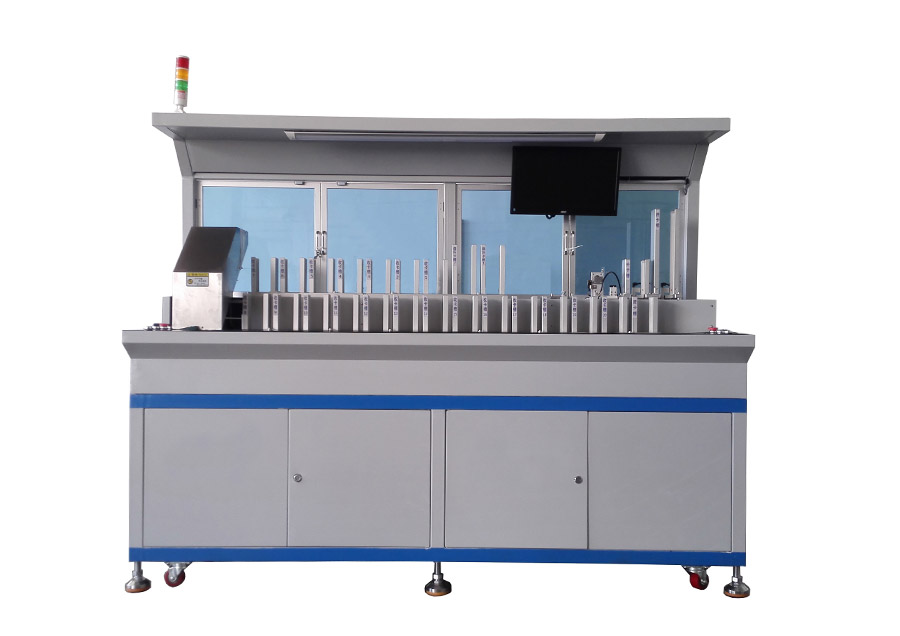

Overall View
Detail View
Operation View

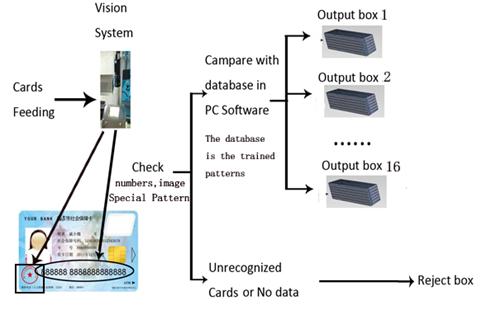

A card sorting machine is designed to sort cards, letters, and flat items into multiple output channels based on predefined criteria such as barcode, OCR, or size.
Our standard models come with 20 or 40 output channels, but we can customize the number of channels based on your specific requirements.
It can handle cards ranging from 50x50mm to 250x350mm, with thickness from 0.1 to 2.0 mm.
The machine uses advanced OCR (Optical Character Recognition) and barcode recognition (1D/2D) technology for accurate sorting decisions.
Yes, the machine is designed for gentle handling, making it suitable for delicate items like cards, letters, and documents.
Standard lead time is 10-14 weeks after order confirmation, depending on customization requirements and current production schedule.
Ready to optimize your card sorting operations? Contact our team for a customized solution.
