Product details

1、Overview

Our company envelope bagging machine is an ideal equipment suitable for realizing envelope sorting, making bags and loading into soft bags automation, simple and intuitive operation, high production efficiency

2、functional characteristics

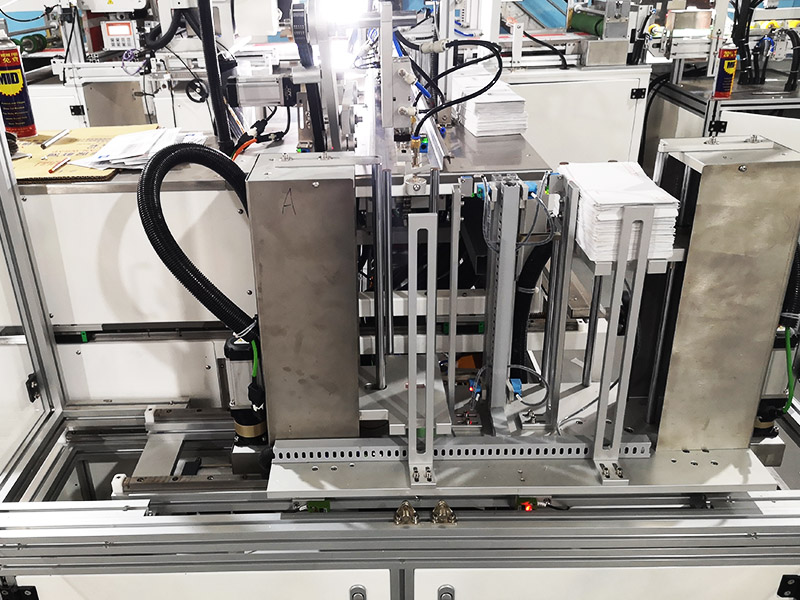

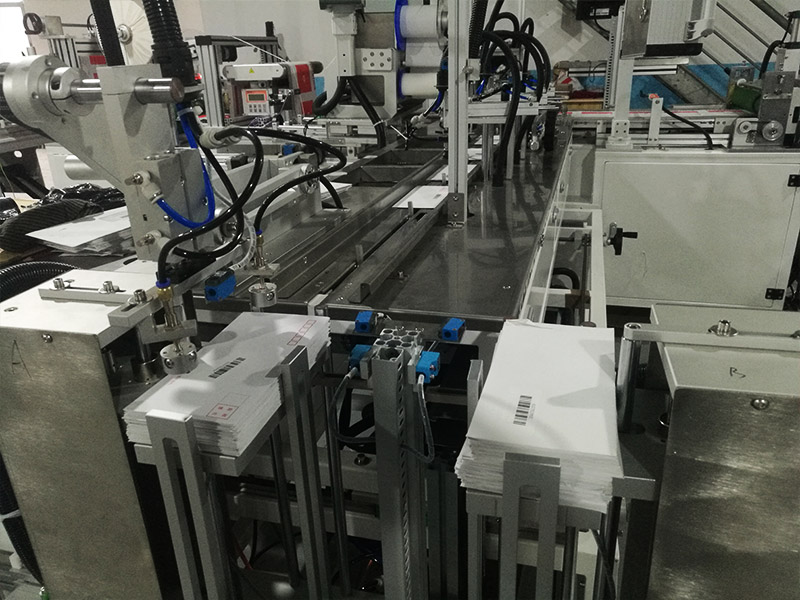

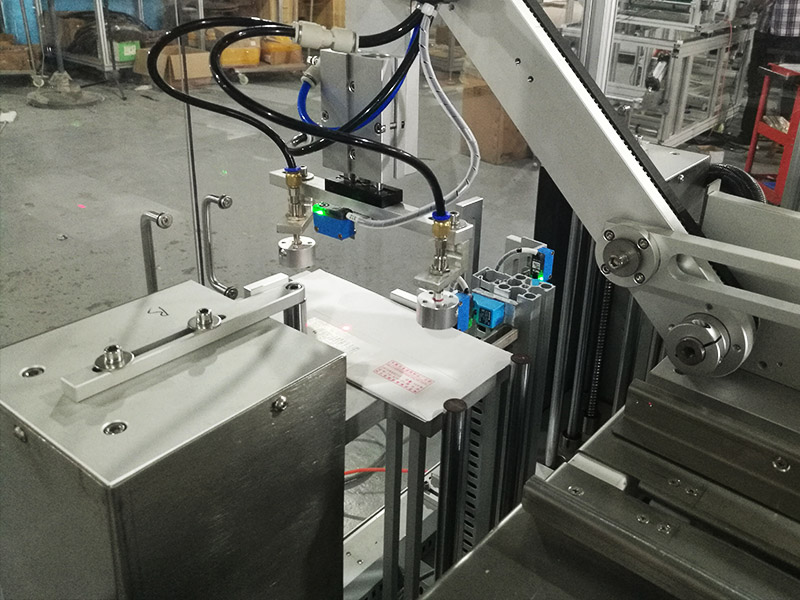

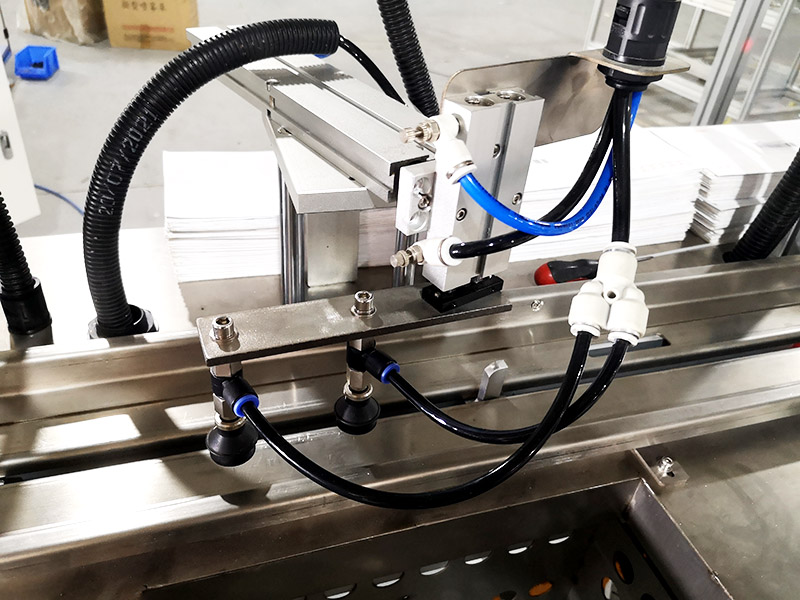

2.1 The small envelope is manually piled, automatically divided, and then into the conveyor belt, read the strips above the small envelope Code, to obtain the barcode information.

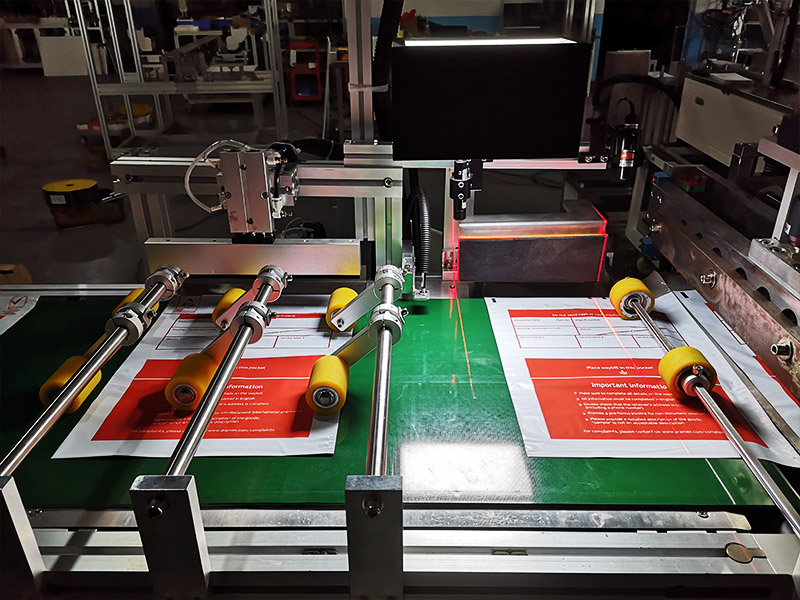

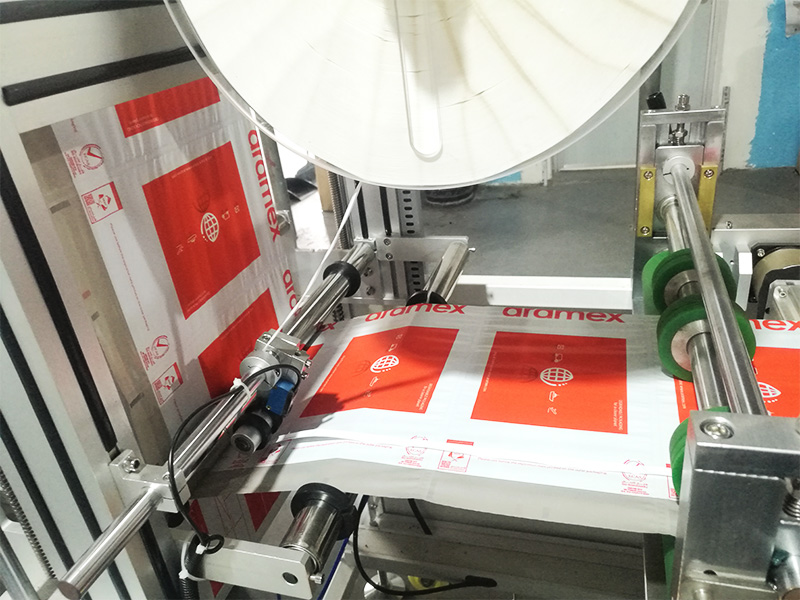

2.2 The rolled bag is automatically discharged and made in the form of hot sealing with a cutting knife.

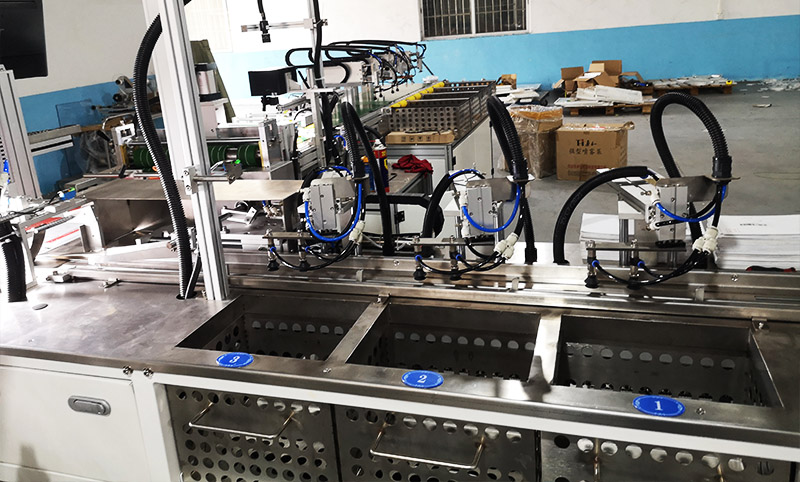

2.3 Barcode information obtained from the small envelope, then find the data in the database, and check the decision on whether to eliminate the envelope or proceed to the next step.

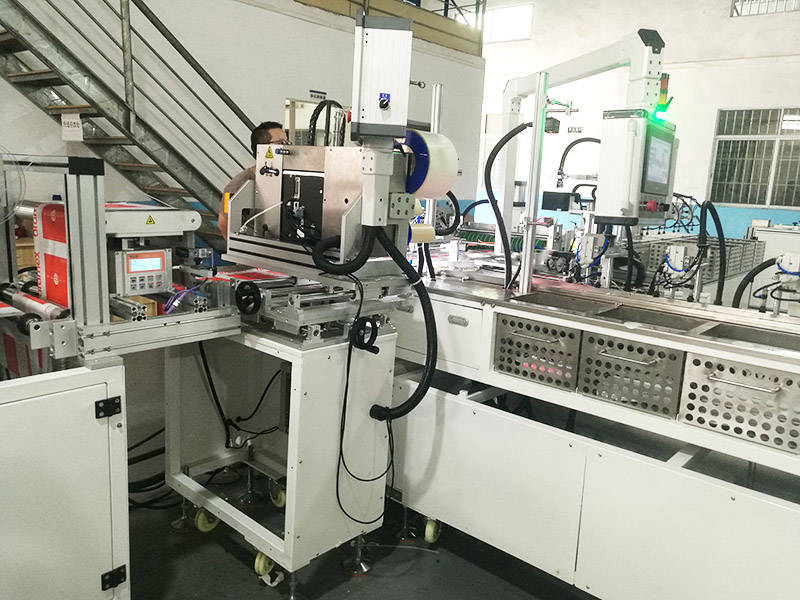

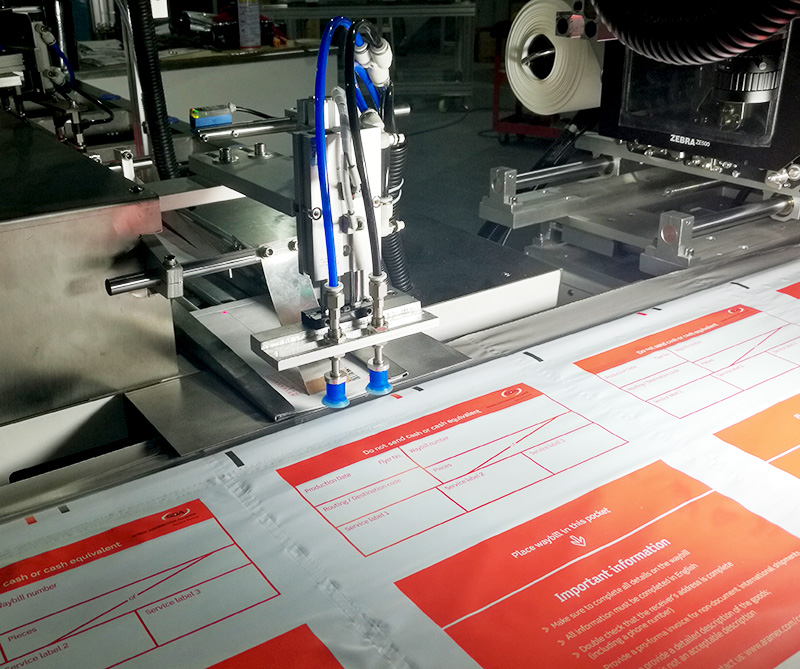

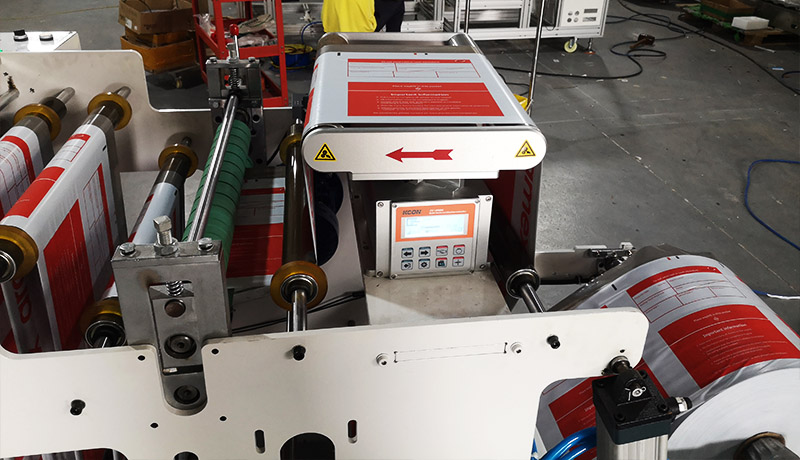

2.4 If the corresponding data is found in the device computer, the corresponding label printing information is obtained from the device computer database and sent to the labeling machine, and the label is printed on the bag.

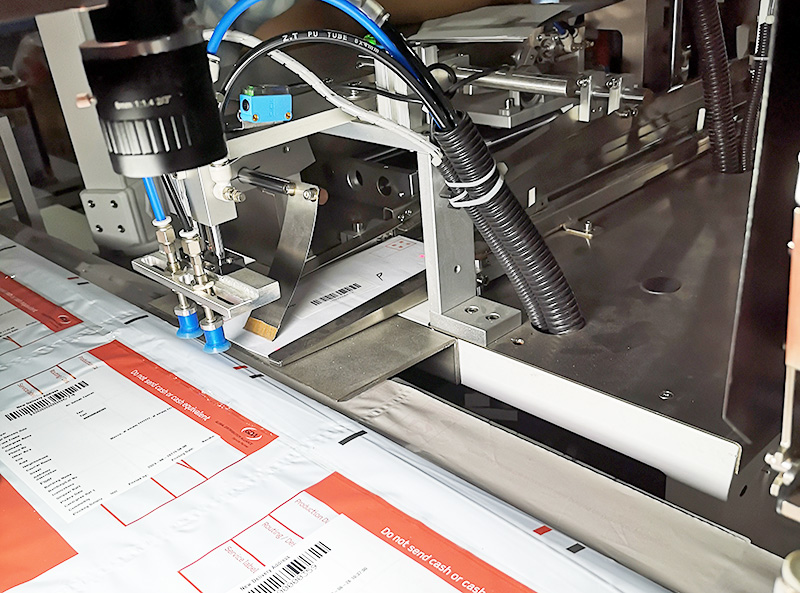

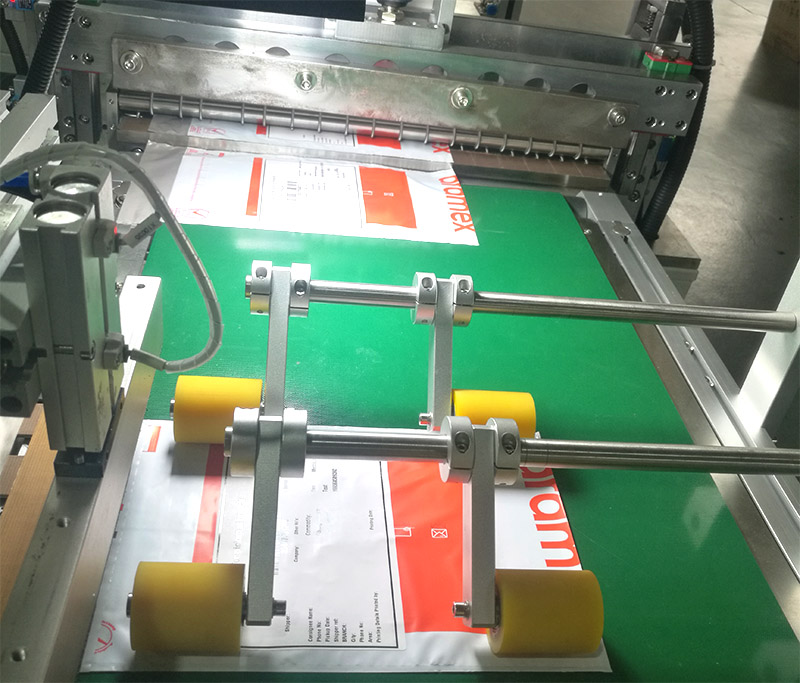

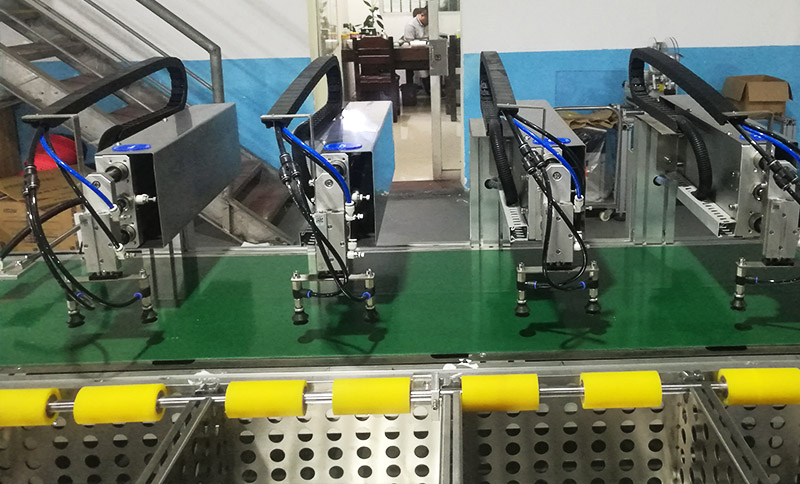

2.5. Put the small envelopes in a bag.

2.6. Seal the bag (self-adhesive strip).

2.7 Check whether the barcode printed on the envelope barcode is consistent.

2.8 Check whether the label is well affixed (whether or not).

2.9 The whole machine speed can be adjusted, strong flexibility.

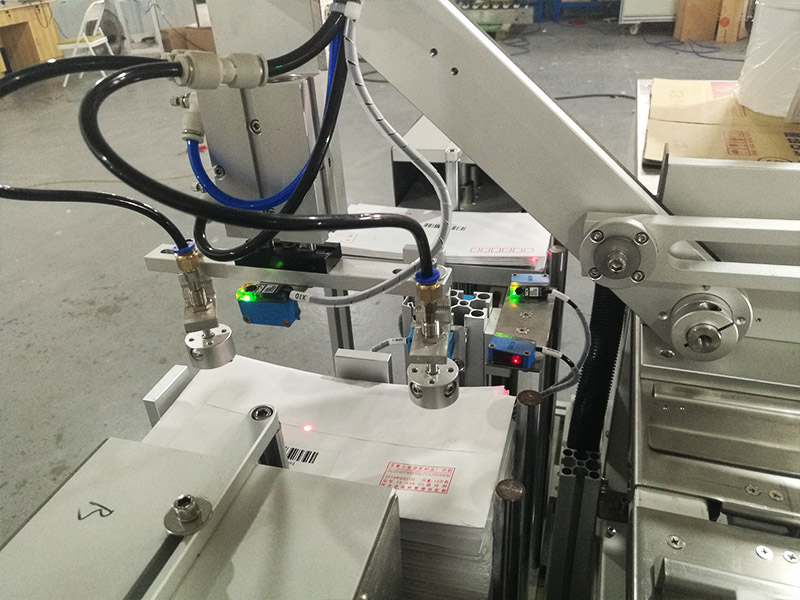

2.10 Using reflective photoelectric sensor, not affected by the shape, color and material of the product, accurate detection.

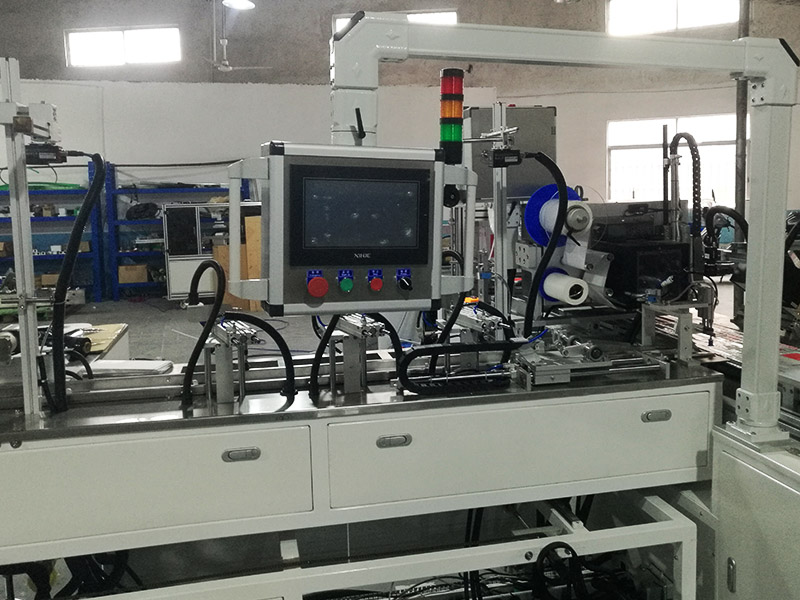

2.11 This machine adopts touch screen operation, intuitive and simple.

2.12 The electrical part meets CE certification requirements and all organizations meet GMP environmental requirements.

3.Technical Specifications

Operating speed

1200 PCS/hour

Applicable products

Envelope:23*11.5cm, bag:34* 26 cm, 26*18cm,33*18cm

Rated power

About5KW

Power

AC~220V/330V

Use temperature

0-50℃

Air source

Bar

Use the humidity

15-90%

Weight


Overall dimensions

L250+140+205+300CM±10CM, W:325CM±5CM  H:180CM±5CM

Number of operators

 1 person
