High-Efficiency Swivel Wheel Sorters

The Zowinda rotary wheel sorting machine is a high-end intelligent sorting integrated system that integrates servo drive, intelligent control and recognition technology. It is specially designed for e-commerce logistics, warehousing and express delivery, as well as industrial warehousing scenarios. Relying on modular wheel groups and intelligent dispatching systems, it realizes fully automated processing of goods transportation, identification and diversion, and precise classification. It features high sorting efficiency, wide adaptability to product categories, and extremely low sorting errors, significantly enhancing the level of logistics sorting automation and operational efficiency.

Send Email：[email protected]

Email INQUIRY

Product details

High-Efficiency Swivel Wheel Sorters: Complete Guide 2026

Advanced swivel wheel sorting technology for high-speed parcel handling

High-Efficiency Swivel Wheel Sorter System

Figure 1: Zowinda high-efficiency swivel wheel sorter in operation

Introduction to Swivel Wheel Sorting Technology

The High-Efficiency Swivel Wheel Sorter represents the cutting edge of automated sorting technology. Using precision-engineered swivel wheels to divert items at high speed, these systems deliver exceptional throughput while maintaining gentle handling for delicate parcels.

In modern logistics and distribution centers, the demand for faster, more accurate sorting has never been greater. Our swivel wheel sorters address this challenge by combining:

High Throughput: Capable of sorting 10,000-20,000+ items per hour depending on configuration
Gentle Handling: Swivel wheel mechanism minimizes impact on fragile items
Compact Design: Smaller footprint than traditional belt or tilt-tray sorters
Versatile Applications: Suitable for e-commerce, postal, retail, and industrial sorting
Low Maintenance: Fewer moving parts than alternative technologies

How Swivel Wheel Sorting Works

Figure 2: Close-up of swivel wheel sorting mechanism showing precise item diversion

The swivel wheel sorting principle is elegantly simple yet highly effective:

Induction: Items are fed onto the main conveyor line at controlled intervals
Identification: Barcode scanners, OCR cameras, or RFID readers identify each item's destination
Routing: The control system determines which outlet each item should be diverted to
Divergence: At the correct position, a swivel wheel activates and gently pushes the item into the target chute
Collection: Sorted items accumulate in designated collection bins or downstream conveyors

Technical Specifications

Parameter	Specification
Sorting Capacity	Up to 20,000 pieces/hour
Item Size Range	100x100mm to 600x600mm
Item Weight Range	10g - 30kg
Sorting Accuracy	99.9%+
Number of Outlets	Configurable 6-40+ outlets
Conveyor Speed	0.5 - 2.5 m/s adjustable
Recognition Technology	Barcode, QR Code, OCR, RFID optional
Power Supply	380V/50Hz or custom voltage

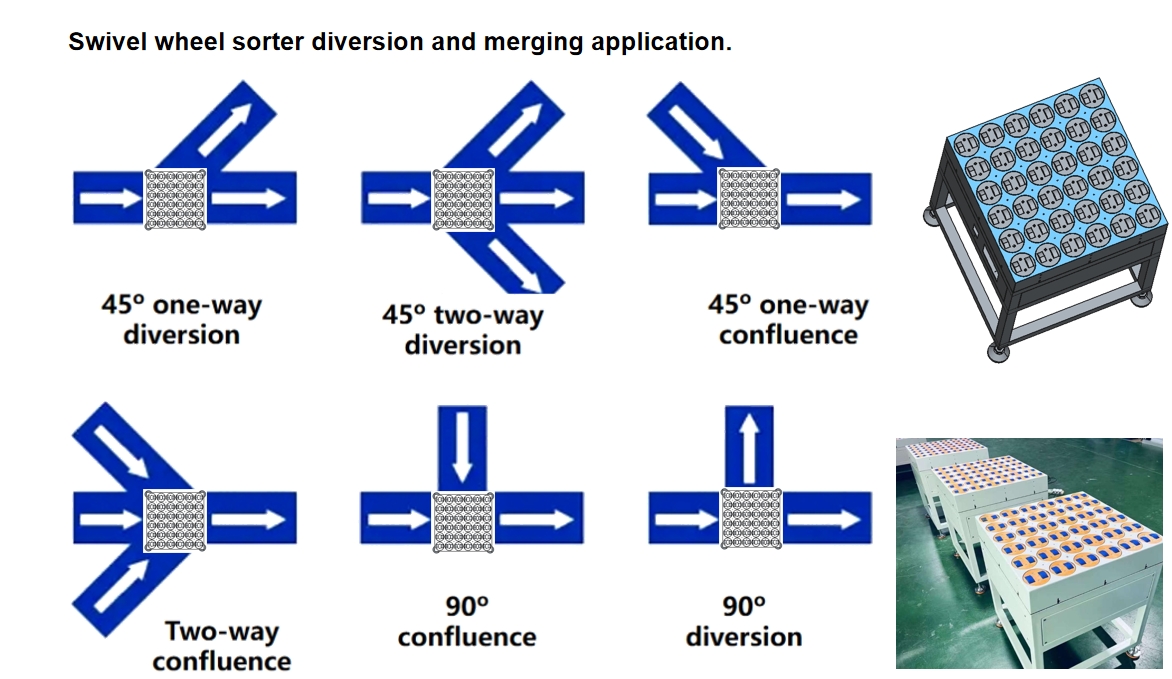

System Configuration Options

Linear Configuration

Single straight line layout ideal for narrow spaces and simple A-to-B sorting operations.

L-Shaped Configuration

90-degree turn design for space-efficient layouts with multiple discharge points.

Loop Configuration

Closed-loop system for recirculating unsorted or exception items automatically.

Multi-Level Configuration

Stacked systems for maximum sorting capacity in limited floor space.

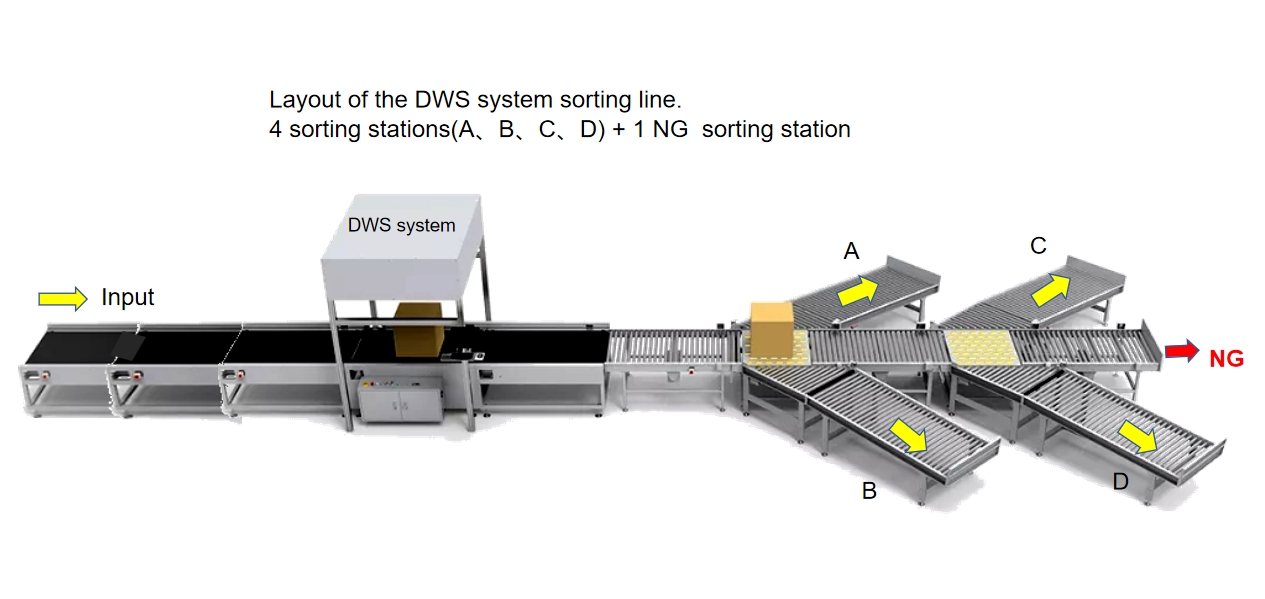

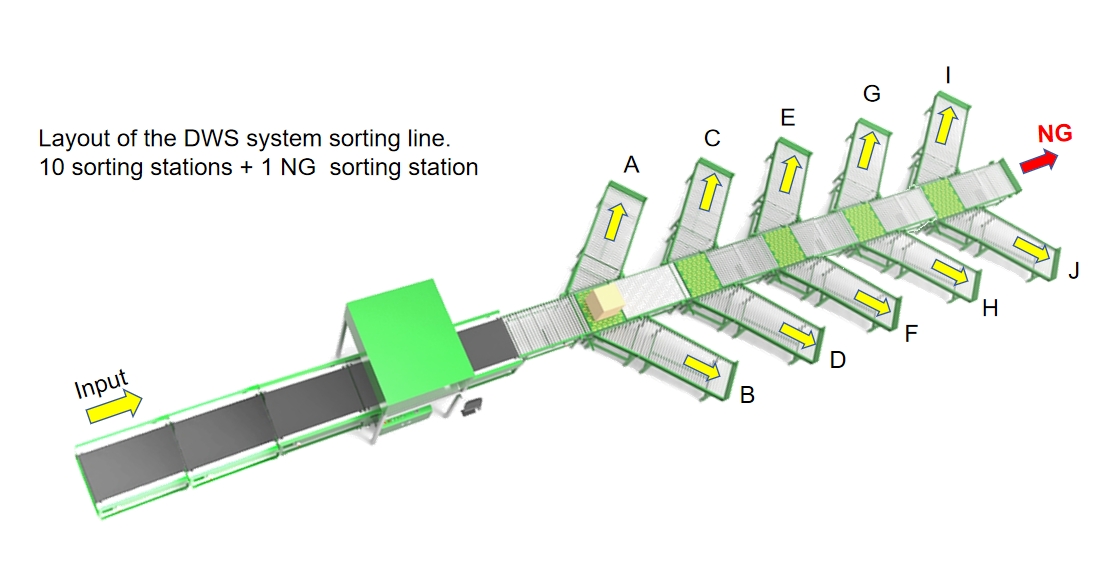

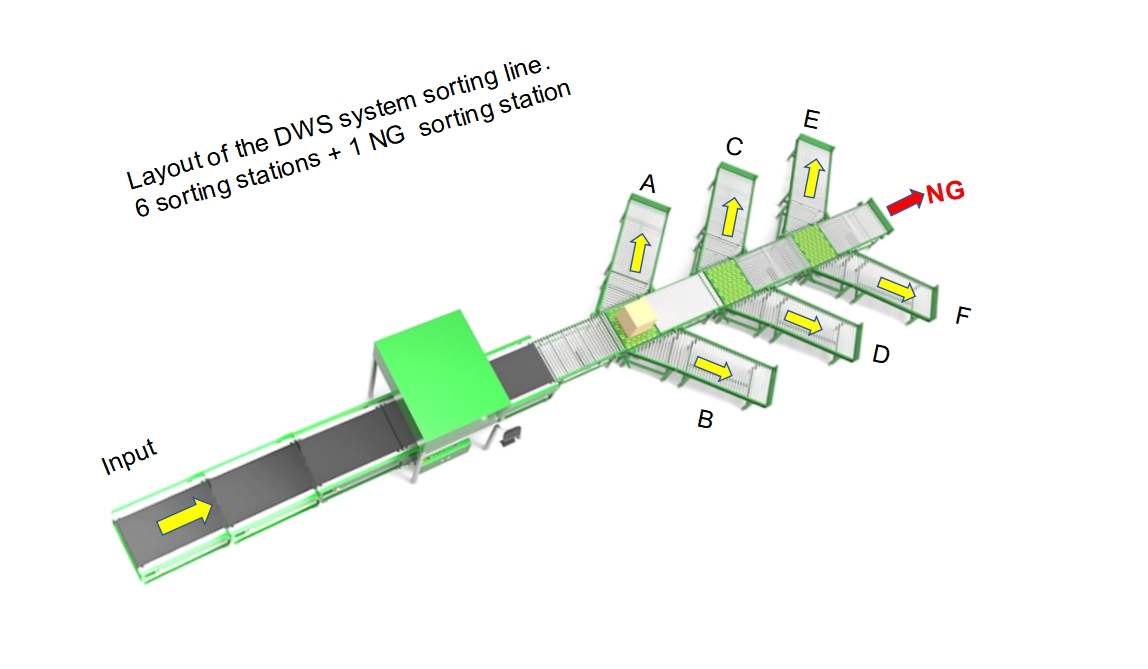

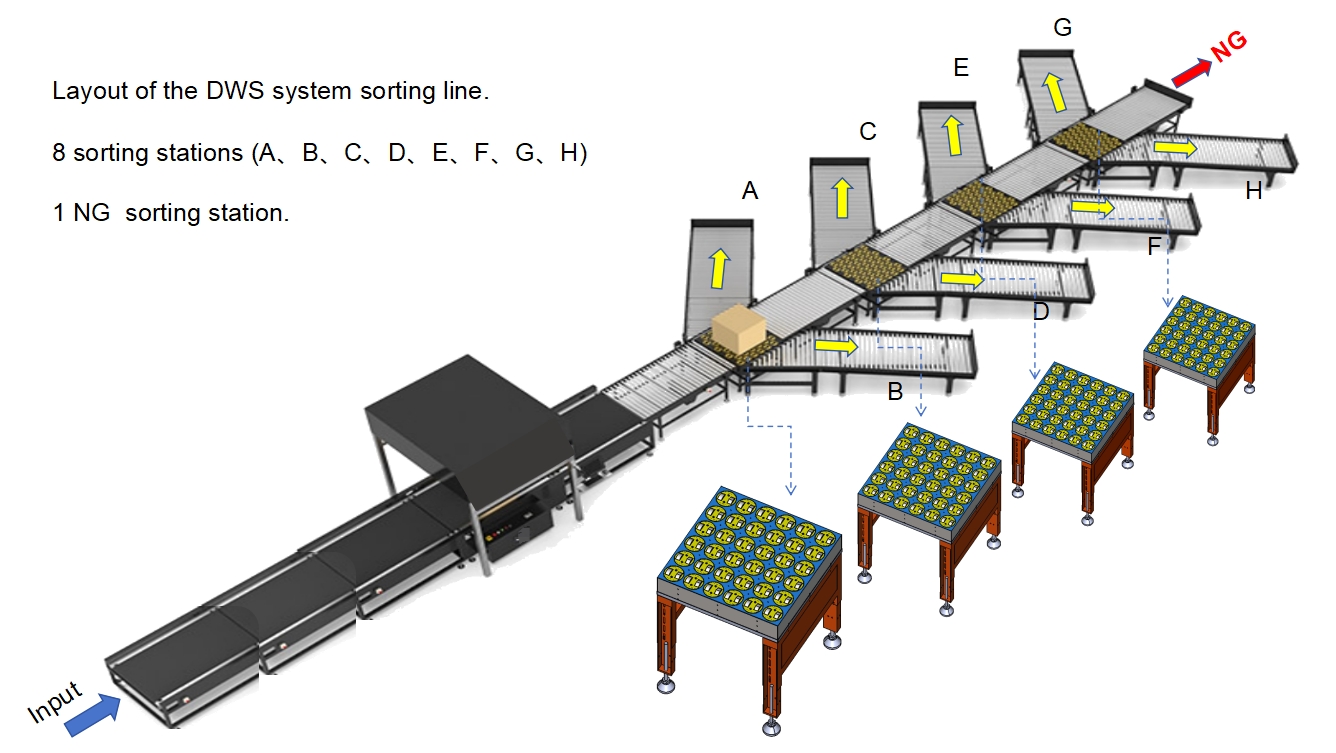

Figure 3: Multi-outlet swivel wheel sorting system configuration example

Key Advantages Over Alternative Technologies

Feature	Swivel Wheel	Tilt Tray	Cross Belt
Gentle Handling	Excellent	Good	Moderate
Maintenance Cost	Low	Medium	Higher
Footprint	Compact	Large	Very Large
Noise Level	Quiet (<70dB)	Moderate	Louder
Initial Investment	Lower	Higher	Highest

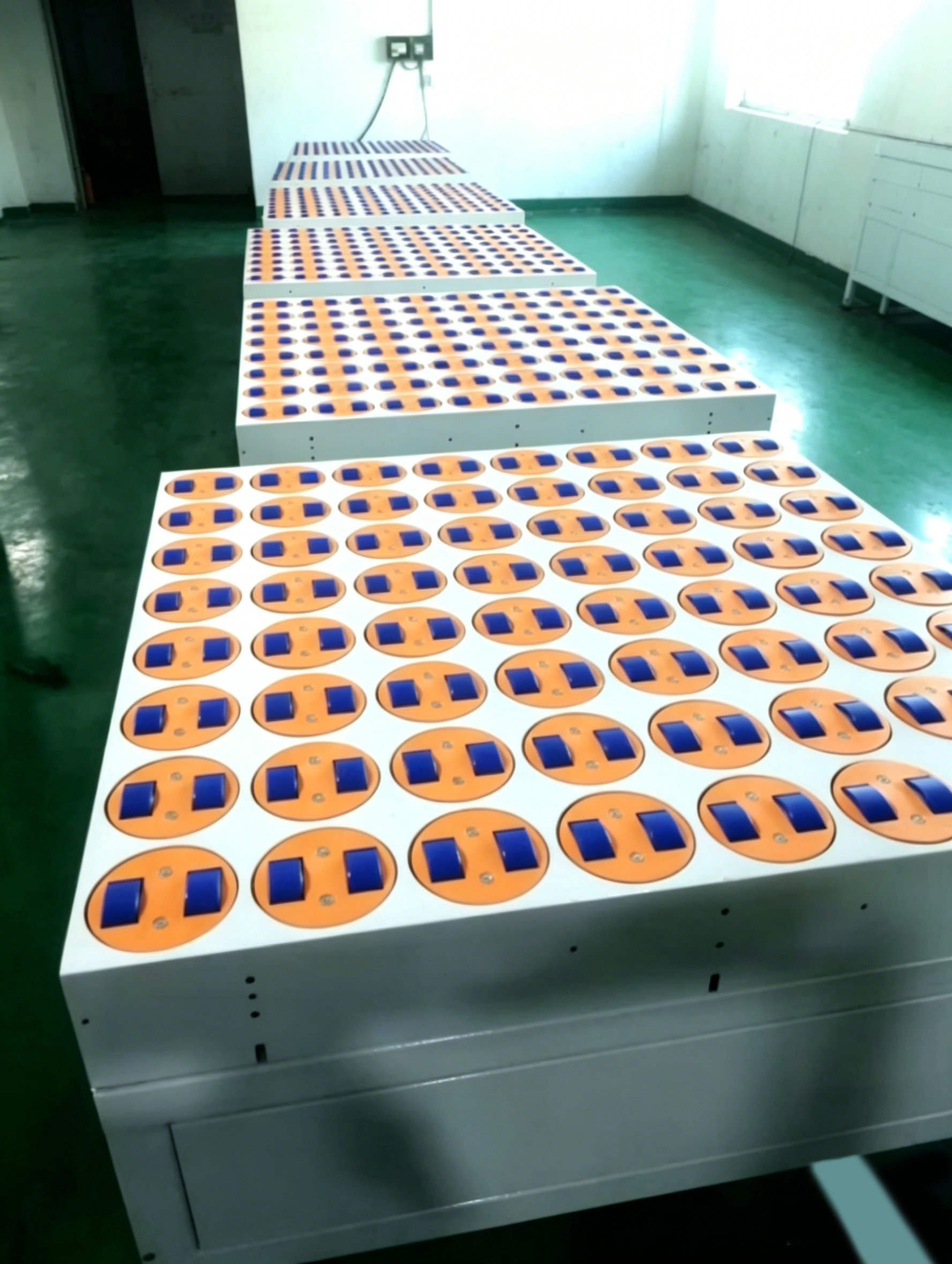

Figure 4: Customer installation of swivel wheel sorting system

Application Scenarios

Ideal Use Cases:

E-commerce Fulfillment Centers: High-volume order processing with multiple shipping destinations
Cross-Dock Operations: Rapid sorting of incoming goods to outbound trucks
Retail Distribution: Sorting merchandise to store locations or regional warehouses
Postal & Courier Services: Package sorting by zip code, route, or delivery zone
Manufacturing Logistics: Component routing to assembly lines or workstations
Airport Baggage Handling: Luggage sorting to destination carousels

ROI Analysis

Labor Savings (Annual)	$150,000 - $400,000
Error Rate Reduction	95% fewer mis-sorts
Throughput Increase vs Manual	5-10x capacity increase
Typical Payback Period	18-30 months

Frequently Asked Questions (FAQ)

What types of items can a swivel wheel sorter handle?

Swivel wheel sorters can handle a wide variety of items including poly mailers, cardboard boxes, padded envelopes, books, and soft goods. The gentle action makes them particularly suitable for fragile or irregularly shaped items that could be damaged by more aggressive sorting methods.

How does it compare to cross-belt sorters?

Swivel wheel sorters offer lower initial investment, smaller footprint, quieter operation, and lower maintenance costs compared to cross-belt sorters. While cross-belt may have higher peak throughput, swivel wheel provides excellent value for most medium-to-high volume applications.

Can I add more outlets later?

Yes! Our modular design allows you to start with as few as 6 outlets and expand to 40+ outlets as your volume grows. Additional modules can typically be installed with minimal downtime.

What maintenance is required?

Routine daily cleaning (5 minutes), weekly inspection of wheel mechanisms, monthly lubrication check. Annual preventive maintenance recommended. Most components are field-replaceable without specialized tools.

Does it integrate with our WMS system?

Absolutely. Our swivel wheel sorters support standard integration protocols including RESTful API, MQTT, OPC-UA, and TCP/IP socket communication. We can integrate with SAP, Oracle WMS, Manhattan Associates, Blue Yonder, and most other warehouse management platforms.
