High-Efficiency Swivel Wheel Sorters---Layoutof the DWS system sorting line. 6 sorting stations + 1 NG sorting station

The rotating wheel sorting machine is an integrated intelligent logistics sorting equipment that integrates servo transmission, intelligent scheduling and precise detection technologies. It is suitable for various scenarios such as express delivery distribution, e-commerce warehousing, and factory material sorting. With the flexible swing wheel module and intelligent control system, it can complete the entire process of automatic cargo transportation, barcode recognition, directional diversion and automatic sorting, ensuring stable and efficient operation, supporting a wide variety of package types, with high sorting accuracy, effectively reducing reliance on manual labor, and significantly improving the automation of warehouse sorting and overall operational efficiency.

Send Email：[email protected]

Email INQUIRY

Product details

High-Efficiency Swivel Wheel Sorters | 6 Sorting Stations + NG Station

Compact DWS sorting line solution with intelligent exception handling

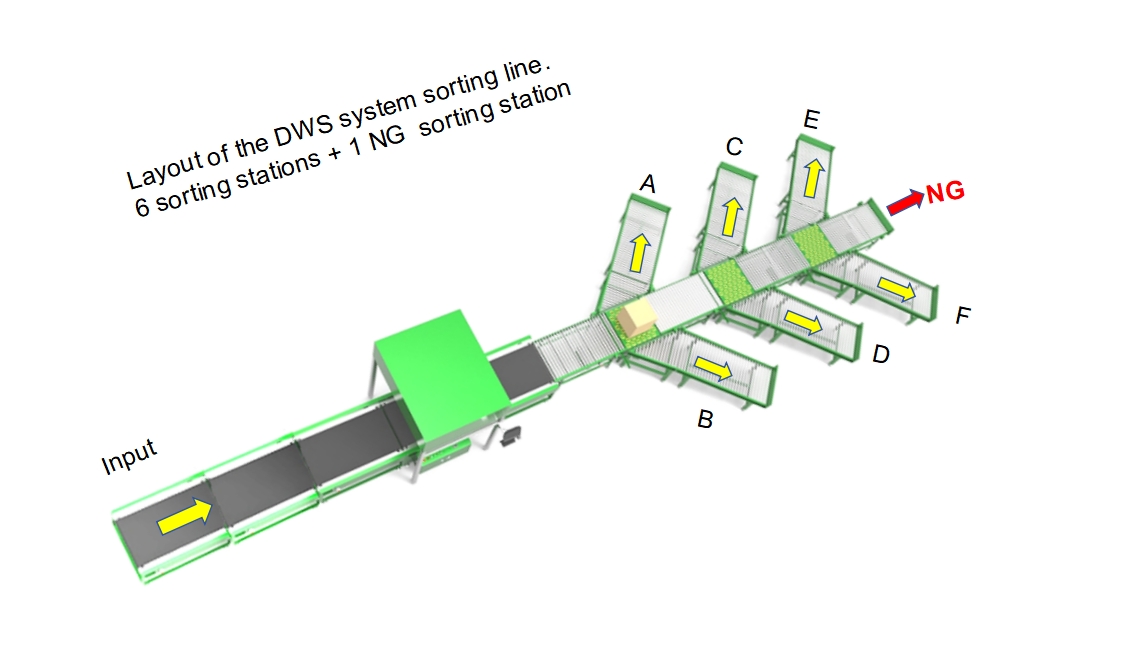

Figure 1: Complete swivel wheel sorting system with 6 discharge stations plus NG exception handling

System Overview

This High-Efficiency Swivel Wheel Sorting Machine features a streamlined design optimized for medium-volume distribution centers requiring reliable multi-destination sorting with built-in exception handling.

The system integrates seamlessly into existing DWS (Dimensioning, Weighing, Scanning) lines to create a complete automated sorting workflow:

6 Primary Sorting Stations: Each configurable for different destinations or zones
Dedicated NG Station: Automatic routing of unreadable, overweight, or damaged items
Throughput: Up to 12,000 pieces per hour continuous operation
Gentle Diversion: Swivel wheel mechanism protects fragile items during sorting
Compact Footprint: Ideal for facilities with limited floor space

Technical Specifications

Parameter	Specification
Total Sorting Stations	6 stations + 1 NG exception station
Sorting Capacity	Up to 12,000 pieces/hour
Item Size Range	100x100mm to 500x500mm
Item Weight Range	50g - 25kg
Sorting Accuracy	99.95%+
Conveyor Speed	0.8 - 1.8 m/s adjustable
Recognition Technology	Barcode / QR Code / OCR optional
Power Supply	AC 380V 50Hz / 220V available

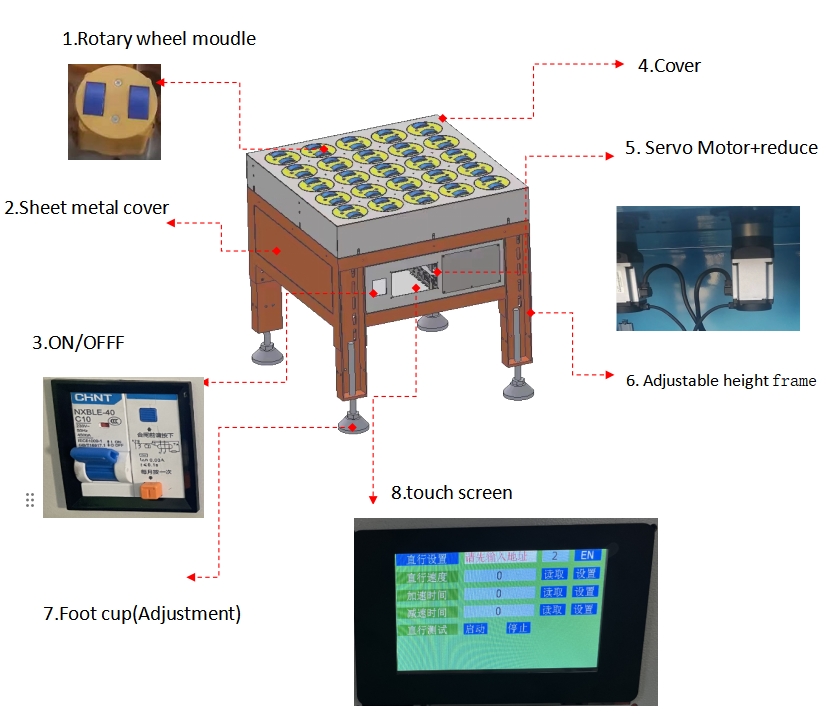

Figure 2: Close-up view of precision swivel wheel diversion mechanism

Key Features & Benefits

Intelligent Exception Handling

Dedicated NG station automatically captures unreadable, oversized, or problematic items without interrupting main flow.

Gentle Item Handling

Swivel wheel technology diverts items smoothly, ideal for fragile electronics, cosmetics, and premium goods.

Easy Integration

Standard interfaces connect to WMS, TMS, and ERP systems. Plug-and-play with most conveyor systems.

Low Maintenance Design

Fewer moving parts than tilt-tray sorters. Daily cleaning takes only 5 minutes. Annual PM recommended.

Application Scenarios

Perfect For:

E-commerce Fulfillment: Order sorting by shipping carrier or destination region
Retail Distribution: Merchandise allocation to store locations
Cross-Dock Operations: Inbound-to-outbound rapid transfer sorting
3PL Warehouses: Multi-client sorting on shared equipment
Manufacturing: Component routing to assembly workstations

Figure 3: Customer installation showing complete sorting line integration

ROI & Business Value

Labor Cost Savings	60-70% reduction
Error Rate vs Manual	99% fewer errors
Capacity Increase	5x manual throughput
Payback Period	18-24 months

Frequently Asked Questions (FAQ)

What is the NG station used for?

The NG (No Good) station automatically routes items that cannot be identified, are outside size/weight limits, or appear damaged. These items are collected separately for manual review without stopping the entire sorting process.

Can I expand from 6 to more stations later?

Yes. Our modular architecture allows adding additional sorting modules. Expansion typically requires minimal downtime and can be completed in 1-2 days by our technicians.

What recognition technologies are supported?

Standard barcode (1D/2D), QR code, Data Matrix, and optional OCR for address reading. RFID integration is also available as an upgrade option for high-speed identification needs.

How long does installation take?

Standard installation takes 3-5 working days including setup, calibration, testing, and operator training. Complex integrations may require up to 2 weeks total lead time.
