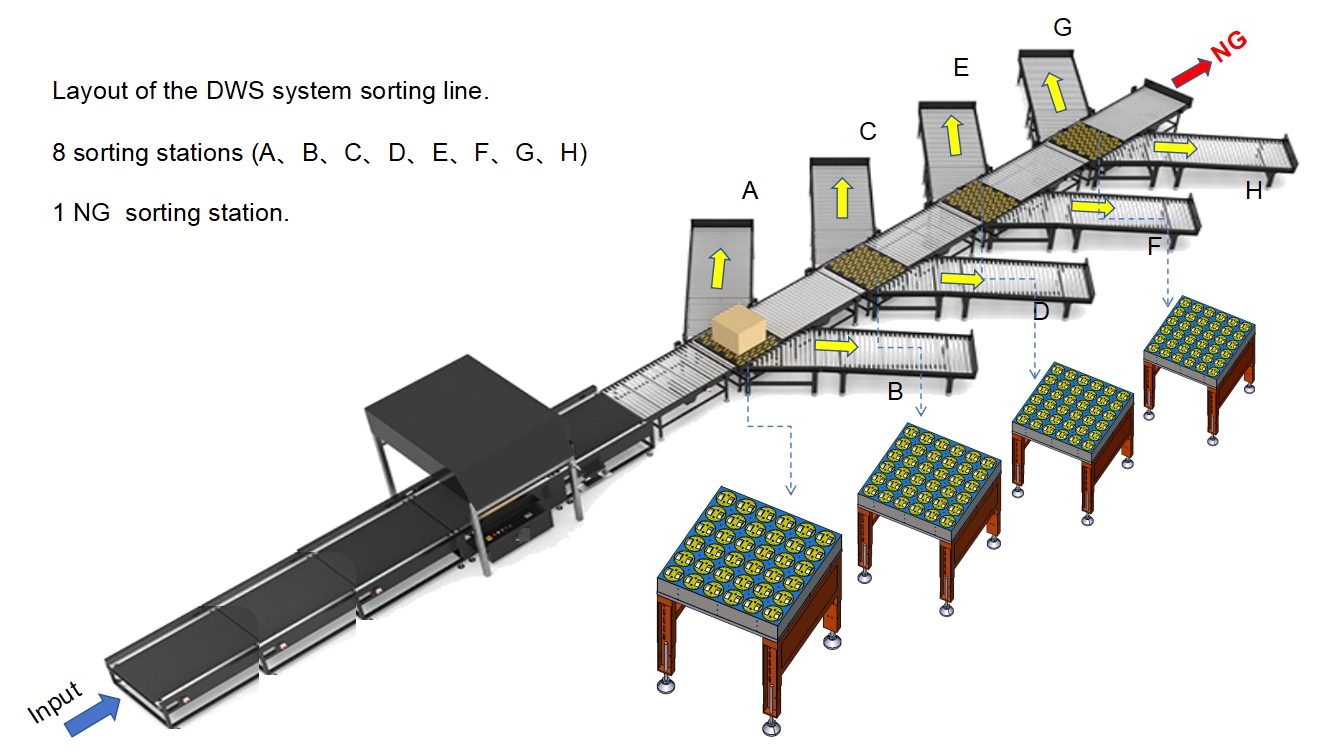

High-Efficiency Swivel Wheel Sorters--- Layout of the DWS system sorting line. 8 sorting stations (A、B、C、D、E、F、G、H) 1 NG sorting station.

This high-efficiency swivel wheel sorter matches DWS sorting line layout. It is configured with 8 regular sorting stations and 1 NG rejection station, featuring stable operation, precise sorting and high line efficiency for logistics parcel sorting.

Send Email：[email protected]

Email INQUIRY

Product details

High-Efficiency Swivel Wheel Sorters | 8 Sorting Stations (A-H) + NG Station

Advanced DWS line sorting solution with expanded capacity and intelligent exception handling

Figure 1: Complete 8-station swivel wheel sorting system with A-H discharge chutes plus NG exception handling

System Overview

This 8-Station High-Efficiency Swivel Wheel Sorter is designed for distribution centers requiring higher sorting granularity with dedicated outlets for each major destination zone or carrier route.

The system features 8 primary sorting stations (labeled A through H) plus a dedicated NG (No Good) exception station for automatic handling of problematic items.

Key Specifications

Parameter	Specification
Sorting Stations	8 stations (A,B,C,D,E,F,G,H) + 1 NG
Throughput Capacity	Up to 16,000 pieces/hour
Item Size Range	100x100mm to 550x550mm
Sorting Accuracy	99.95%+
Recognition Tech	Barcode / QR / OCR optional
Conveyor Speed	0.8 - 2.0 m/s adjustable

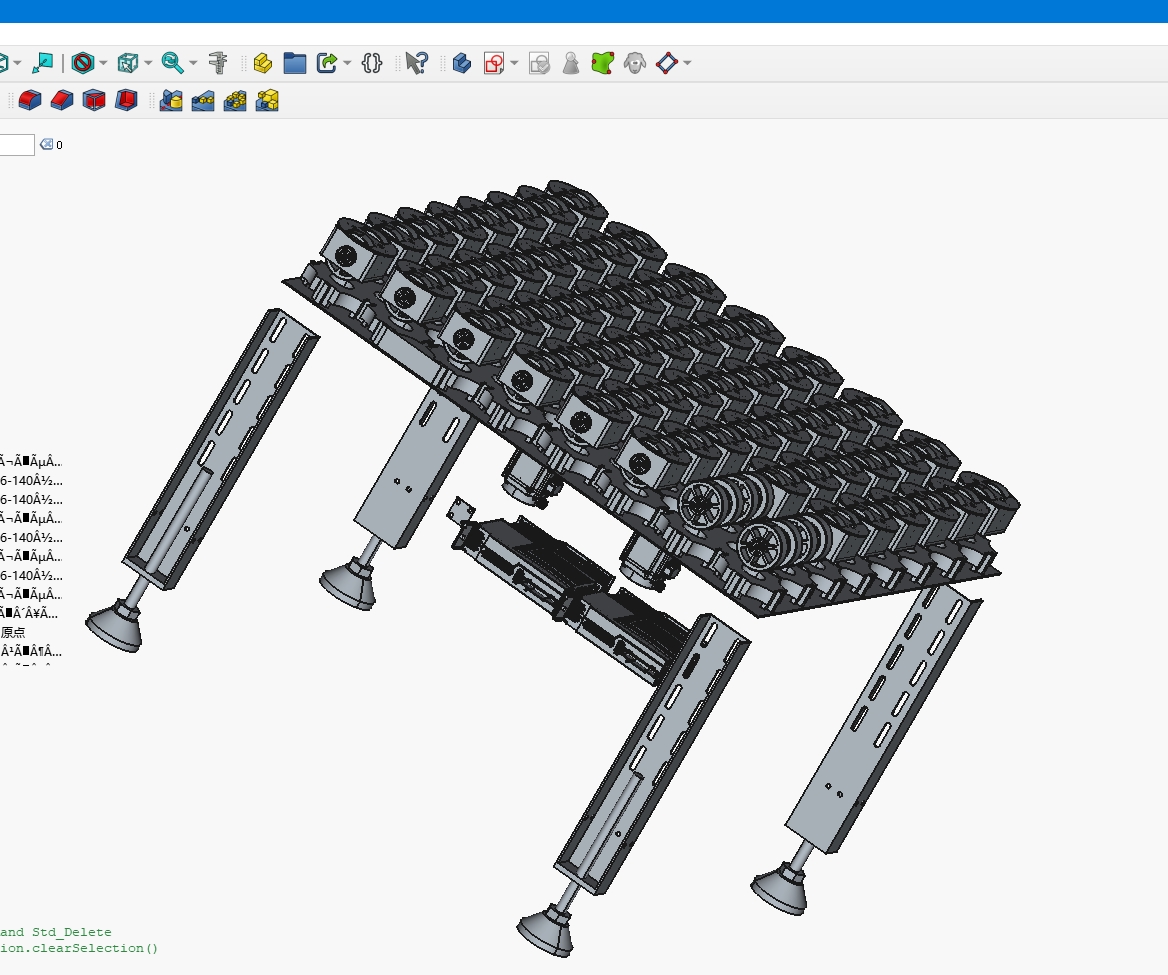

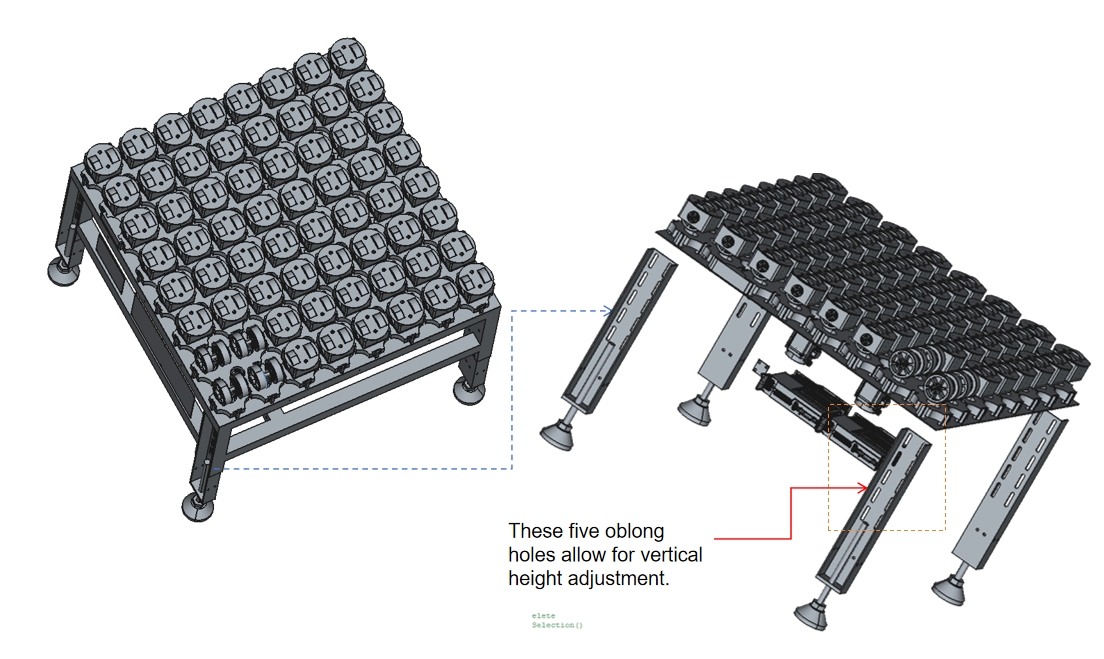

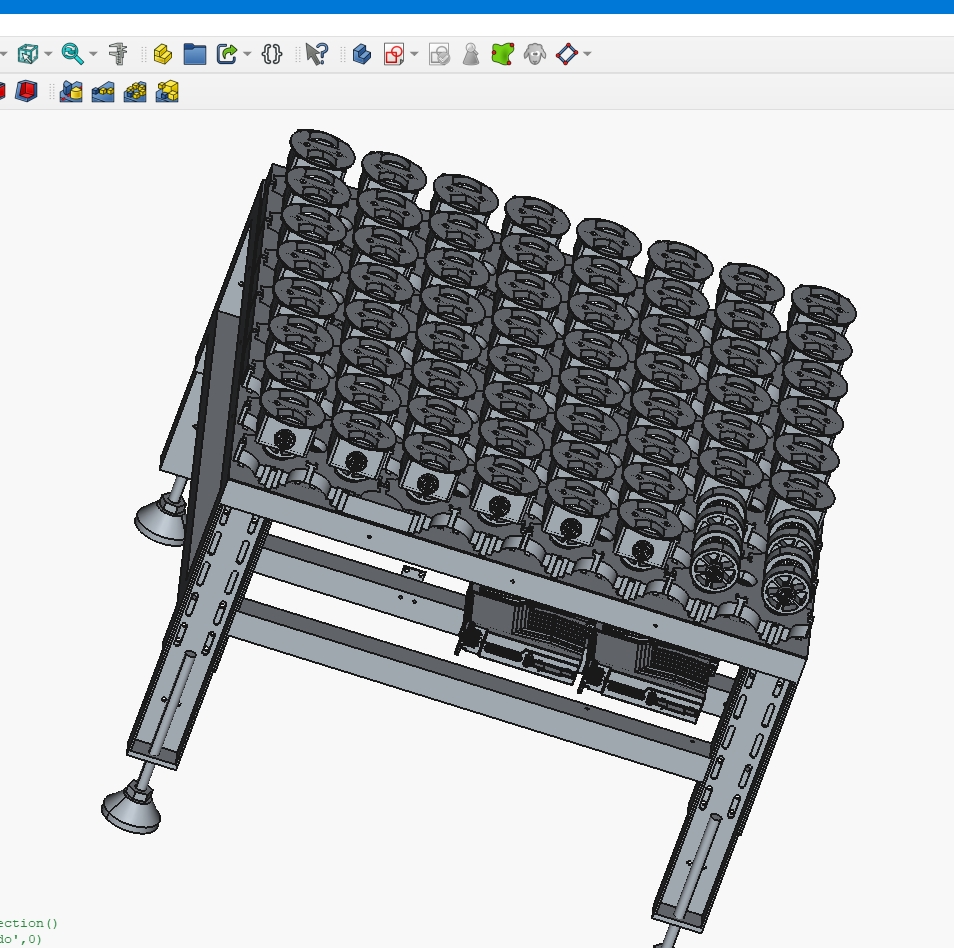

Figure 2: Precision swivel wheel mechanism showing smooth item diversion process

Why Choose This Configuration?

More Destinations

8 stations allow sorting to more zones without reconfiguration. Perfect for regional hubs serving multiple areas.

Higher Throughput

Up to 16,000 PPH handles peak season volumes with ease while maintaining 99.95% accuracy.

Smart Exception Handling

NG station captures unreadable items automatically. No manual intervention needed during normal operation.

ROI Analysis

Labor Savings	65-75%
Error Reduction	99% fewer mis-sorts
Throughput vs Manual	6x increase
Payback Period	18-24 months

Frequently Asked Questions

What is the difference between 6-station and 8-station models?

The 8-station model adds 2 additional sorting outlets, allowing you to handle up to 33% more destination zones without reconfiguring the system. Ideal for larger operations with complex routing needs.

Can I upgrade from a 6-station model later?

Yes! Our modular design allows field upgrades. Adding 2 additional stations typically takes 1-2 days with minimal production downtime.

What happens to items that cannot be read?

Unreadable items are automatically diverted to the NG (No Good) station where they can be reviewed manually. The main sorting flow continues uninterrupted.

How does this compare to cross-belt sorters?

Swivel wheel offers gentler handling (critical for fragile items), lower initial cost, smaller footprint, and lower maintenance. Cross-belt provides higher absolute throughput but at significantly higher investment.
