Modular Rotary Wheel Sorting Unit

This modular rotary wheel sorting unit is a premium intelligent sorting module integrated with servo drive, intelligent control and high-precision recognition technologies. As the core component for constructing logistics sorting lines, it is well suited for application scenarios such as e-commerce logistics, express warehousing and industrial storage.

Send Email：[email protected]

Email INQUIRY

Product details

Modular Rotary Wheel Sorting Unit: The Intelligent Core of Modern Sorting Systems

How modular rotary wheel technology enables flexible, scalable, and high-precision sorting for logistics automation in 2026

Modular Rotary Wheel Sorting Unit Main View

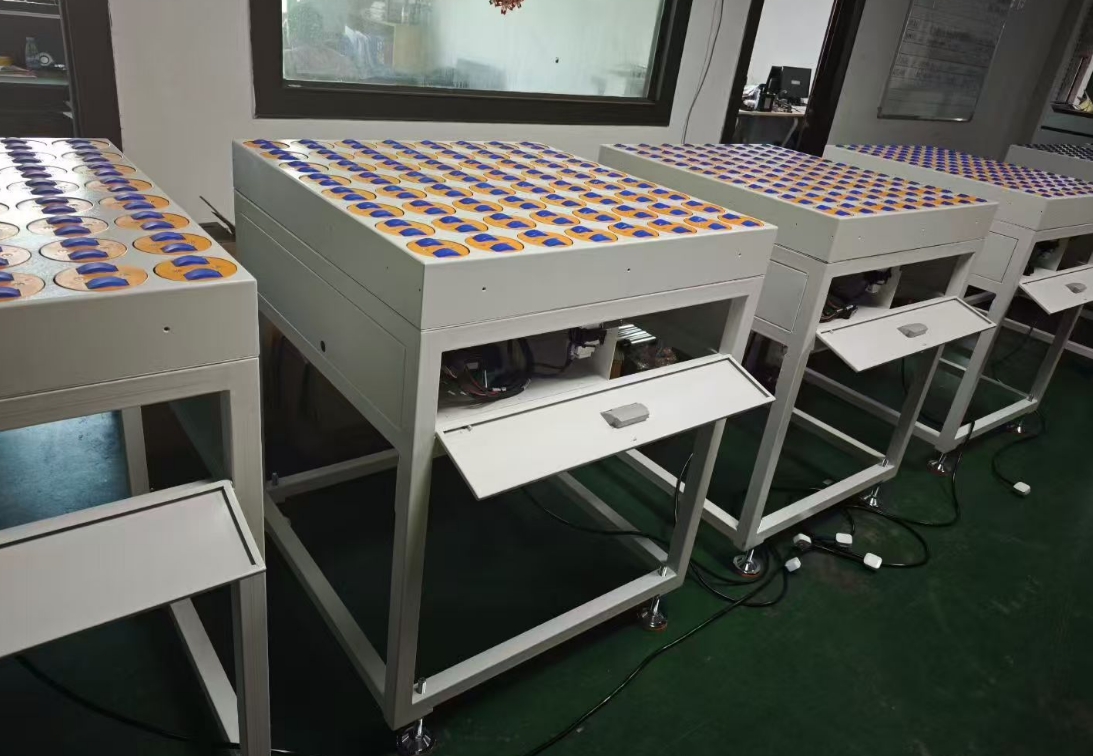

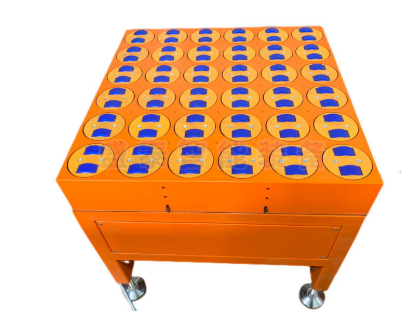

Figure 1: Modular rotary wheel sorting unit with intelligent servo drive system

The Challenge: Why Traditional Sorting Modules Fall Short

As e-commerce and logistics volumes continue to surge in 2026, distribution centers face unprecedented pressure to process parcels faster, more accurately, and with greater flexibility. Traditional sorting modules often suffer from:

Critical Limitations of Legacy Sorting Modules:

Rigid Configuration: Fixed sorting angles and positions cannot adapt to changing operational needs
Complex Integration: Difficult to integrate with existing conveyor systems and control software
High Maintenance: Frequent belt replacements and mechanical adjustments cause costly downtime
Limited Scalability: Cannot easily expand capacity as business grows
Poor Energy Efficiency: Continuous operation at full power regardless of actual load

The Solution: Modular Rotary Wheel Sorting Unit

The Modular Rotary Wheel Sorting Unit is a premium intelligent sorting module that integrates servo drive, intelligent control, and high-precision recognition technologies. As the core component for constructing logistics sorting lines, it is ideally suited for e-commerce logistics, express warehousing, and industrial storage applications.

Figure 2: Detailed view of rotary wheel mechanism with precision servo control

Key Technical Advantages

Feature	Specification	Benefit
Modular Design	Plug-and-play units	Scale from 4 to 24+ outlets without system redesign
Servo Drive Technology	High-precision servo motors	99.9%+ sorting accuracy with smooth, quiet operation
Intelligent Control	PLC + IoT connectivity	Real-time monitoring, predictive maintenance, remote diagnostics
Sorting Speed	Up to 8,000 items/hour per unit	Handle peak volumes without bottlenecks
Package Compatibility	50mm - 600mm parcels	Process diverse parcel sizes without manual adjustment
Energy Efficiency	Variable frequency drive	Reduce energy consumption by 30-40% vs. fixed-speed systems

Modular Rotary Wheel Sorter Application Scene

Figure 3: Modular rotary wheel sorter integrated into a complete sorting line

Application Scenarios

Application Field	Use Case	Value Delivered
E-commerce Logistics	Warehouse and distribution center sorting, combined into lines according to order volume	Cost reduction, efficiency improvement, flexible configuration, intelligent upgrade
Postal & Express	Applied to express branches and transit centers, combined to build customized sorting lines	Improve transit efficiency, cut labor cost, support expansion
Industrial Warehousing	Matched with production line and warehouse logistics for material sorting and turnover	Optimize logistics efficiency, flexible layout, stable operation
Specialized Industries	Books, medical care, and other industries requiring targeted sorting	Precise sorting, strong adaptability, expandable and upgradeable

Technical Specifications

Core Parameters:

Sorting Capacity: 6,000 - 8,000 items/hour per module
Sorting Accuracy: ≥99.9%
Parcel Size Range: Min 50×50×10mm, Max 600×500×400mm
Parcel Weight: 0.01kg - 30kg
Number of Outlets: Configurable 4-24 (or more in custom configurations)
Drive System: High-precision servo motor with variable frequency control
Control System: PLC-based with IoT connectivity (4G/5G/WiFi/Ethernet)
Power Supply: 380V/50Hz (customizable for different regions)
Operating Temperature: -10°C to +40°C
Communication Protocol: TCP/IP, Modbus RTU/TCP, Profinet (optional)

Integration & Customization Options

Software Integration

WMS/WCS integration via standard APIs, support for major platforms (SAP EWM, Manhattan, Blue Yonder)

Hardware Compatibility

Compatible with all major conveyor types: belt, roller, chain, and pop-up wheel systems

Custom Configurations

Custom outlet angles, speeds, and layouts to match your facility's unique space constraints

Scalability

Add modules as your business grows - no need to replace entire system

Frequently Asked Questions (FAQ)

What is the typical lead time for a customized modular rotary wheel sorting system?

Standard configurations ship within 4-6 weeks. Custom integrations may require 8-12 weeks depending on complexity. We maintain ready-to-ship inventory for common configurations to minimize lead times.

Can the modular units be reconfigured after installation?

Yes! The modular design allows for reconfiguration of outlet positions and angles without replacing the entire unit. This flexibility is ideal for facilities with evolving operational needs.

What maintenance is required for the servo drive system?

Routine maintenance includes quarterly lubrication (15 minutes per unit), annual belt tension check, and firmware updates (remote via IoT). Our predictive maintenance system alerts you before issues occur, minimizing unplanned downtime.

How does the energy consumption compare to traditional belt sorters?

Our variable frequency servo drive reduces energy consumption by 30-40% compared to fixed-speed belt sorters. The system automatically adjusts power based on actual parcel flow, eliminating wasted energy during low-volume periods.

What warranty and after-sales support do you provide?

We provide a 2-year standard warranty on all hardware components and 5-year warranty on the servo drive system. Our global support team offers 24/7 remote diagnostics and on-site service within 48 hours in major markets.
