Professional Loading & Unloading Solution for Logistics Centers, Warehousing & Distribution Hubs
The Belt Telescopic Conveyor is a specialized material handling solution designed for high-efficiency loading and unloading operations in logistics terminals, express distribution centers, e-commerce warehouses, and port container yards. Featuring an extendable telescopic design (up to 17 meters) with hydraulic lifting capability (0~±5°), this conveyor significantly reduces labor costs by up to one-third while doubling handling efficiency compared to manual operations.
This equipment is widely used by major express companies such as SF Express, YTO Express, STO Express, ZTO Express, and JD Logistics. It is ideal for truck loading/unloading, sorting line connections, and rapid cargo transfer scenarios.

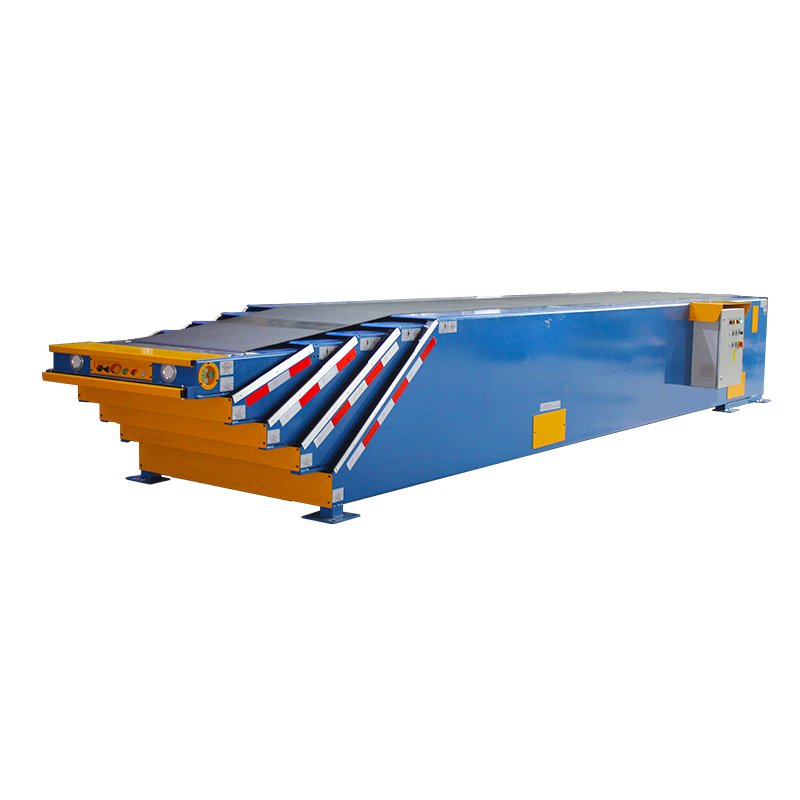

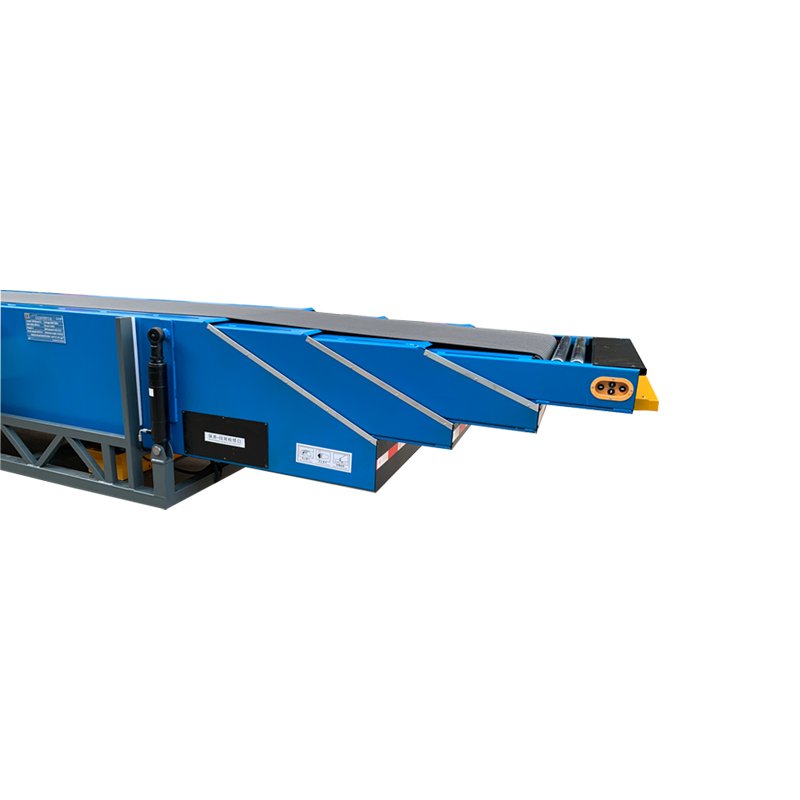

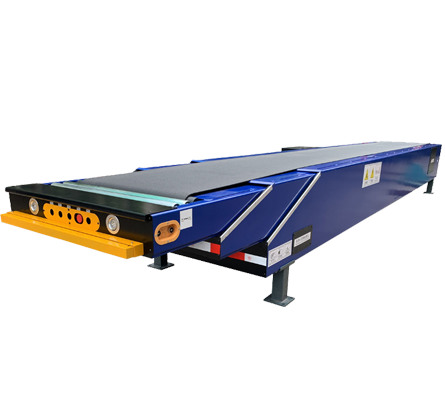

Built from heavy-duty blue platform frame with yellow warning lights and control panels on the front. Telescopic black conveyor belts on both sides ensure stable operation under continuous heavy-load conditions.
Powered by SEW or Chengbang brand reduction motors with integrated braking functionality. Ensures reliable start/stop performance and precise speed control for safe operation.
Intelligent belt storage device stores excess conveyor belts and enables smooth dynamic length adjustment. Extension/retraction is fast and seamless during operations.
Hydraulically controlled lifting system allows the extended end to be raised or lowered between 0° and ±5°. Perfect for matching different dock heights and truck bed levels.
Equipped with emergency stop buttons, safety guards, warning lights, and anti-slip platforms. Fully complies with international machinery safety standards (CE/ISO).
Suitable for express hubs, airport baggage handling, food processing lines, pharmaceutical distribution, automotive parts logistics, and general warehousing applications.
| Parameter | Specification |
|---|---|
| Product Name | Belt Telescopic Conveyor |
| Max Telescopic Length | 4m - 17m (customizable) |
| Belt Width | 500mm / 600mm / 800mm / 1000mm |
| Lifting Angle Range | 0 ~ ±5° (hydraulic) |
| Load Capacity | 60 kg/m |
| Belt Speed | 0.5 - 2.5 m/s (adjustable) |
| Drive Motor | SEW / Chengbang reduction motor with brake |
| Belt Material | PVC / PVK / Rubber (optional) |
| Frame Material | Carbon steel with powder coating |
| Control Method | Button panel + optional remote/wireless |
| Power Supply | 380V / 50Hz (or customized) |
| Operating Temperature | -20°C ~ +45°C |
| Certification | CE / ISO9001 |
High-speed loading/unloading of parcels for SF Express, YTO, STO, ZTO, and other courier networks.
Rapid order fulfillment for platforms like Taobao, JD.com, Amazon, and cross-border e-commerce warehouses.
Baggage loading/unloading and air freight container handling at airports and cargo terminals.
Container stuffing/de-stuffing operations with adjustable height for various container types.
Hygienic material transfer using food-grade PVC belt options for food industry compliance.
Raw material intake and finished goods dispatch in manufacturing facilities and factories.
The standard model extends up to 17 meters. We also offer custom lengths from 4 meters to over 20 meters based on your facility requirements and truck/container specifications.
Yes. The hydraulic lifting mechanism allows real-time adjustment from 0° to ±5°, enabling operators to match varying dock heights, truck bed levels, and sorting table heights without stopping the conveyor.
We offer three standard options: PVC belt (general purpose), PVK belt (wear-resistant for heavy duty), and rubber belt (high-friction for incline). Food-grade and anti-static belts are also available as custom options.
Standard models: 15-25 working days. Custom-configured units: 25-40 working days. We maintain stock of popular configurations for faster delivery when needed.
Yes. Each unit includes detailed installation manuals, video tutorials, and remote video support. On-site installation service is available at additional cost for international customers.
All conveyors are manufactured under ISO9001 quality management system. Standard models carry CE certification. Special certifications (UL, CSA, etc.) can be arranged for specific market requirements.
Contact us today for a free quote, CAD drawings, or factory visit arrangement. Our engineering team responds within 24 hours.
