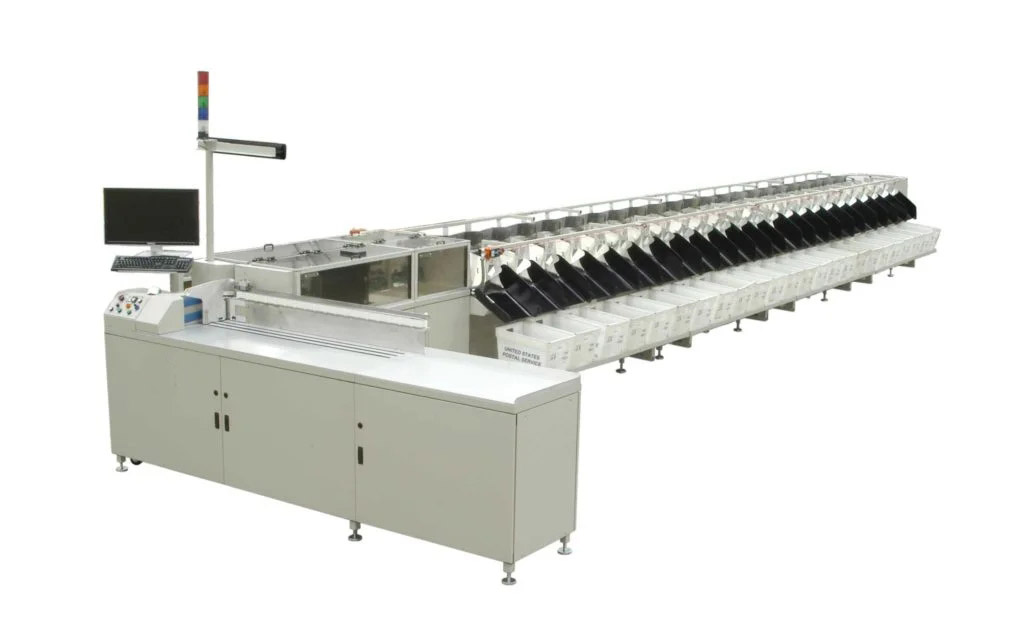

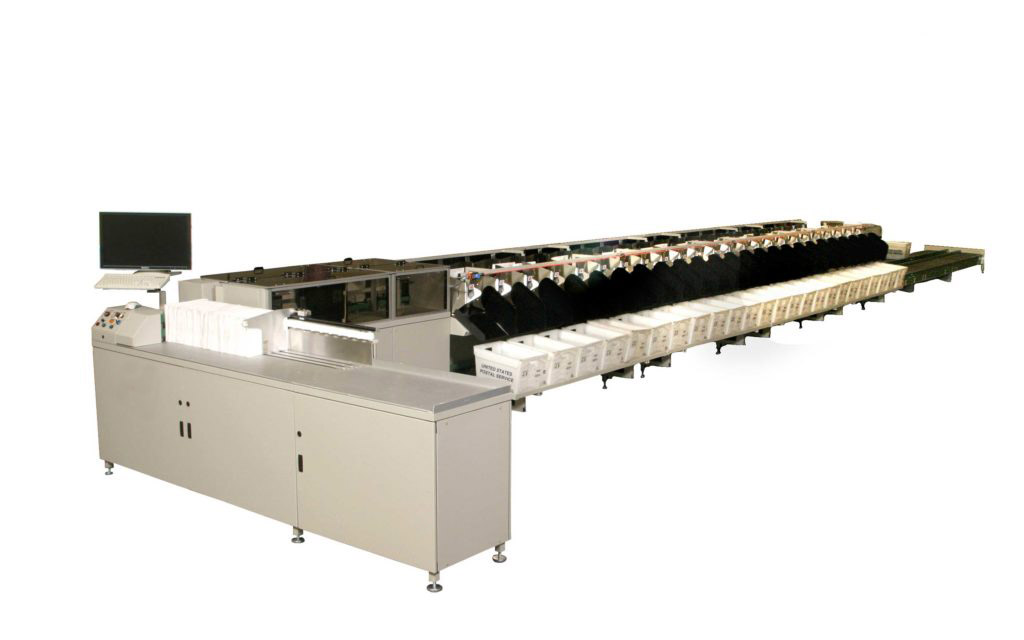

Letter and Flat Mail Sorting System

It has revolutionized flat-sorting technology. It has industry leading throughput. It handles letters and flats up to .6” thick. But, at the end of the day, what you really care about is your bottom line — and that’s where really shines. With its combination of speed and features like patented anti-jam technology, this amazing sorter minimizes the need for human intervention. Which translates to real cost savings and improved profits for your company.

Send Email：[email protected]

Email INQUIRY

Product details

Features & Benefits

Throughputs up to 24,000 letters and 18,000 flats per hour
The industry’s top performing Multi-Line Optical Character Reader (MLOCR) with text and handwritten capabilities
Omni-Directional software-based barcode reader processes IMB, two-dimensional and linear barcodes
Processes flats up to 0.6” thick
Advanced sweep-less chute design
User-friendly diagnostic tools
It't sorter pocket design leverages patented anti-jam technology for more reliable processing
Flexible stacker design allows for pockets, chutes or a combination of both
Transmission-free, direct-drive system reduces power consumption, downtime, and decibel level
Optional integrated conveyor reduces labor
Modular design provides the ability to accomodate future growth by adding more chutes and/or pockets
It's new Optesuite postal and analytics software package
Can be configured for incoming and outgoing mail operations

Technical Specifications

Physical Mail Characteristics

LENGTH	Min 5″ (127 mm) / Max 13″ for mixed (330 mm) Max 15″ for flats (381 mm)
HEIGHT	Min 3.5″ (88.9 mm) / Max 11.75″ (254 mm)
THICKNESS	Min 0.007″ (.178 mm) / Max .5″ (12.7 mm)

Power Requirements

VOLTAGE	208 VAC 3 phase Wye configuration
CURRENT	30 – 90 Amps per phase
FREQUENCY	60 Hz
– or –
VOLTAGE	415 VAC 3 phase Wye configuration
CURRENT	15 – 45 Amps per phase
FREQUENCY	50 Hz

Equipment

MAGAZINE	Standard capacity: 55″ (1409.7 mm)
READER TRANSPORT UNIT	Mounting provisions for Reader Camera; Section to level the mail to transport deck
PICK-OFF RATE	Letter: Up to 24,000 mailpieces per hour; Flats: Up to 18,000 mailpieces per hour
DELAY MODULE	Latency section of OCR and Address Lookup
INKJET/BARCODE READER*	Inkjet and Barcode Reader/Verifier; Transport Section
12 POCKET STACKER MODULE	Pocket capacity: 15″ (381mm) of mail per bin

Optional Equipment

12 Pocket Chute Module(s)

12 Pocket Mixed Module

Conveyor System

Operating Environment

FLOOR LANDING	33 lbs/sq. inch (2.3kg/sq. cm)
TEMPERATURE	50° F (10° C) to 104° F (40° C)
RELATIVE HUMIDITY	Up to 95‰ non-condensing

Key Features

Friction Based Pickoff
Superior OCR technology with handwritten capability
Extensive diagnostics

Key Markets

Insurance Companies
Presort Bureaus
Financial Institutions
Print Shops
Universities
