Maxim Automated Letter Mail Sorter

In your demanding mailing environment, flexibility and reliability are every bit as important as high performance. Maxim delivers all of the above like no other sorter on the market today. Compare the Maxim to other sorters. With its advances in reading and sorting technology, its amazing processing speeds and multiple pocket options, the Maxim is the obvious choice for your complex, high-volume mail sorting needs.

Send Email：[email protected]

Email INQUIRY

Product details

Features & Benefits

Throughput up to 50,000 pieces per hour
Configurable up to 1,000 pockets
The industry’s top performing Multi-Line Optical Character Reader (MLOCR) with text and handwritten capabilities
Omni-Directional software-based barcode reader processes IMB, two-dimensional and linear barcodes
Sorter pocket design leverages patented anti jam technology for more reliable processing
User-friendly diagnostic tools
Modular construction and open architecture allows for easier field upgrades
Your choice of the most compact, ergonomically designed stackers available today
Ergonomic pocket options: single and multiple tier, as well as single and dual sided
Transmission-free, direct-drive system reduces power consumption, downtime, and decibel level
New Optesuite postal and analytics software package
Best-in-class pickoff accuracy
Reliably processes heavier weight marketing mail

Technical Specifications

Physical Mail Characteristics

LENGTH	Min 5″ (127 mm)) / Max 11.5″ (292 mm)
HEIGHT	Min 3.5″ (88.9 mm) / Max 6.375″ (161.9 mm)
THICKNESS	Min 0.007″ (.178 mm) / Max 0.25″ (6.35 mm)

Power Requirements

VOLTAGE	208 VAC 3 phase Wye configuration
CURRENT	30 – 90 Amps per phase
FREQUENCY	60 Hz
– or –
VOLTAGE	415 VAC 3 phase Wye configuration
CURRENT	15 – 45 Amps per phase
FREQUENCY	50 Hz

Equipment

MAGAZINE	Standard capacity: 95″ (2413 mm)
READER TRANSPORT UNIT	Mounting provisions for Reader Camera; Section to level the mail to transport deck
PICK-OFF RATE	Up to 50,000 mailpieces per hour
SERPENTINE DELAY MODULE*	Latency section of OCR and Address Lookup; Inkjet and Barcode Reader/Verifier Transport Section (*only required for MLOCR)

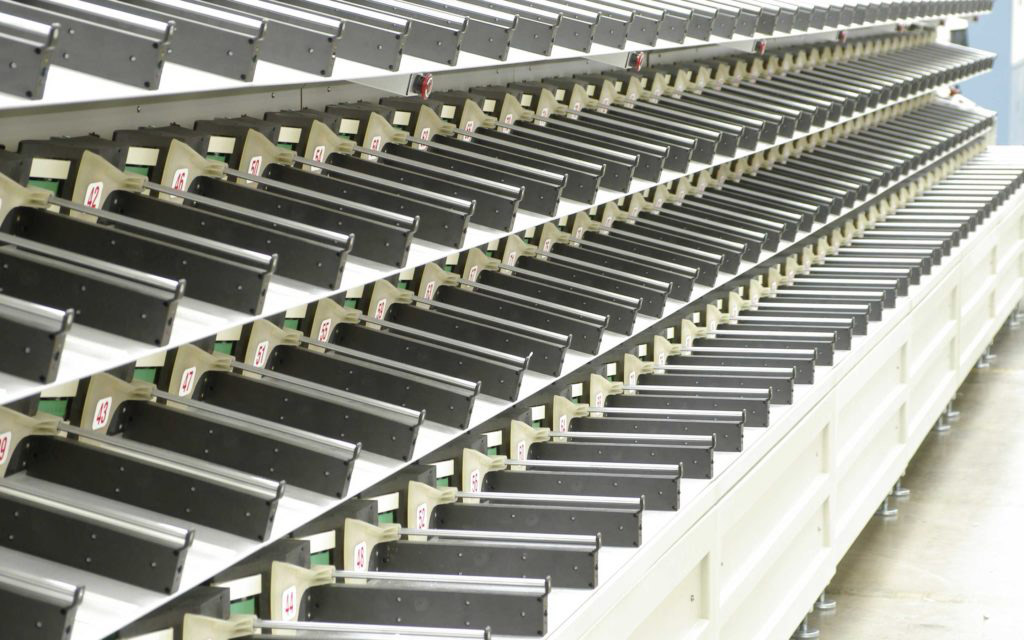

Stacker Options

10 SERIES	1 Level, 1 or 2 Sided
20 SERIES	2 Level, 1 or 2 Sided
30 SERIES	3 Level, 1 or 2 Sided
40 SERIES	4 Level, 1 or 2 Sided

Key Features

Friction Based Pickoff
Superior OCR technology with handwritten capability
Extensive diagnostics

Key Markets

Insurance Companies
Presort Bureaus
Financial Institutions
Print Shops
Universities

Bin Options

Series	Level(s)	Side(s)	Mail Size
10	1	1 or 2	*A
20	2	1 or 2	*A
30	3	1 or 2	*A
40	4	1 or 2	*A

Mail Size Reference

	A	B	C
Maximum Thickness	1/4″ (6.35 mm)	1/2″ (12.7 mm)	3/8″ (9.5 mm)
Maximum Length	11 1/2″ (292.1 mm)	15″ (381 mm)	13″ (330 mm)
Maximum Height	6 3/8″ (162.1 mm)	12″ (304.8 mm)	12″ (304.8 mm)
